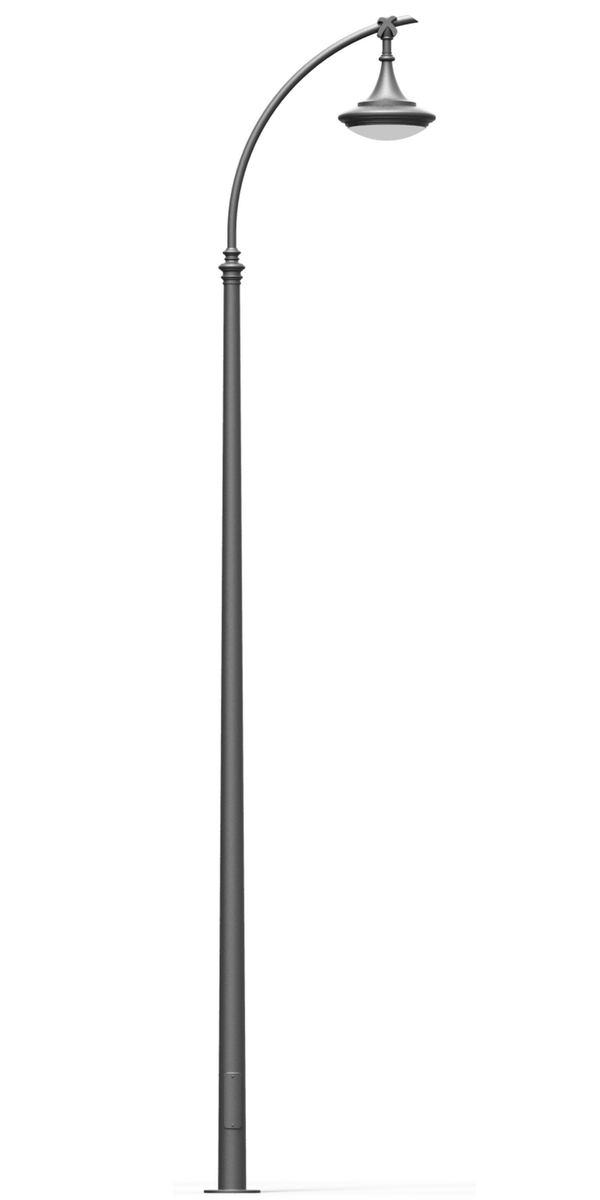

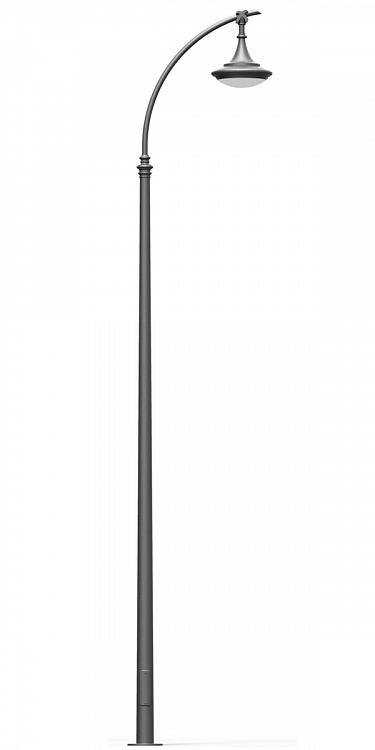

Lantern 2.0.Ok.103.V11-05/1

Download datasheet

Lamp V11-05
Pole Seamless steel conical pole
Height 6270 mm
Weight with foundation 105 kg
"ArchiMet" HAS LAUNCHED ITS OWN PRODUCTION OF SEAMLESS STEEL CONICAL SUPPORTS BY INDUCTION HEATING. MAIN FEATURES AND CHARACTERISTICS:
  • Unique technology of induction heating of steel pipe and rolling it into a conical
  • The strength characteristics are several times higher than conventional electric-welded conical poles
  • Conical part can starting from any height, for example, with a total support height of 5000mm, the cone can start from a height of 1500mm from the ground, so there is more space to place all the necessary electrics
  • Laser-cut door with a special lock
  • Hot-galvanizing
  • Liquid painting in any color according to the RAL catalog
  • Heights: from 3 to 9m
  • Diameters: from 89 to 168mm
  • Warehouse stock from 100 pieces of each height
TYPE OF COATING
The base coating is a polymer zinc-phosphate primer in combination with epoxy or polyurethane enamel from leading European manufacturers. The color of the product is selected by the Customer from the basic palette or from the RAL color catalog. Additionally, it is possible to paint individual elements of the lantern according to the selected style (gold, "patina", etc.)

EMBEDDED PART OF THE FOUNDATION
The support is installed on the embedded part of the foundation  by means of a flange connection. The type, dimensions, power (load-bearing capacity) of the foundations of the supports are calculated in each specific case, depending on the region of operation and the purpose of the support. All foundations  are covered with an anticorrosive
